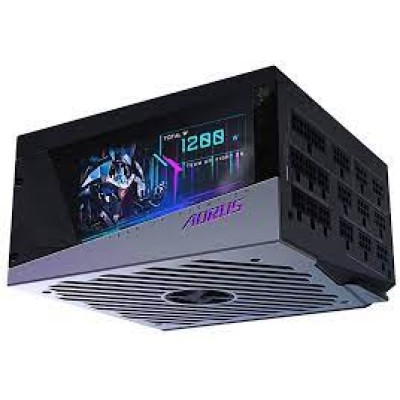

AORUS P1200W 80 PLATINUM MODULAR

Product Description Model: GP-AP1200PM Type: Intel Form Factor ATX 12V v2.31 PFC: Active PFC (>0.9 typical) Input Voltage: 100-240 Vac (full range) Input Current: 15-7.5A Input Frequency: 60-50 Hz Output Capacity: 1200W Dimension: 150 x 160 x 86mm Fan Type: 140mm Double ball bearing Fan 80 PLUS Platinum Efficiency 92% at typical load MTBF: >100,000 hours Protection: OVP/OPP/SCP/UVP/OCP/OTP Power Good Signalz: 100-150ms Hold Up Time: >16ms Cable Type: Flat, All black Connectors: ATX/MB 20 4 Pin x 1 : 610mm*1 CPU/EPS 4 4 Pin x 2 : 650mm*2 PCI-e 6 2 Pin x 10 : 650mm 150mm*4/650mm*2 SATA x 16 : 650mm 150mm 150mm 150mm*4 4 Pin Peripheral x 6 4-Pin floppy x 2 : 600mm 120mm 120mm 150mm*2 * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice. * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration. * All trademarks and logos are the properties of their respective holders. * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
