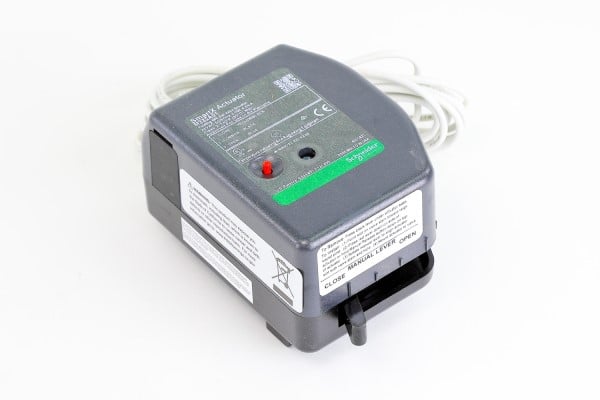

M332A01 Schneider Electric Actuator

Actuator: (M332A01): Actuator Type: Electric Control Signal: Floating Loss of Power Type: Non-Spring Return Power Input Voltage: 24 VAC Leads and Connections: 10 ft Plenum Mechanical Movement: Rotary Protection Rating: NEMA 2 Product Line: Schneider Electric Product Range: SmartX Actuator Product Series: M332 Actuator Use: Ball Valves Product Specifications Actuator Housing Material Polymer Actuator Type Electric Actuator Use Ball Valves Auxiliary Switch 1 SPDT Conduit Connection 3/8 in Control Signal Floating Humidity 5 to 95% non-condensing IP Protection Rating IP11 Lead Length 10 ft Leads and Connections Plenum Loss of Power Type Non-Spring Return Material Seals PTFE Mechanical Movement Rotary Motor Type Split capacitor synchronous NEMA Protection Rating NEMA 2 Override Automatic reset Position Indicator Stroke indicator on bracket Power Consumption Running VA 2.50 VA Power Input Frequency 50 Hz 60 Hz Power Input Voltage 24 VAC Power Input Voltage AC Tolerance Plus 20% or minus 15% Product Range SmartX Actuator Temperature Ambient Operating Range 0 to 60 C (32 to 140 F) Temperature Shipping and Storage Range -40 to 76 C (-40 to 168.8 F)
