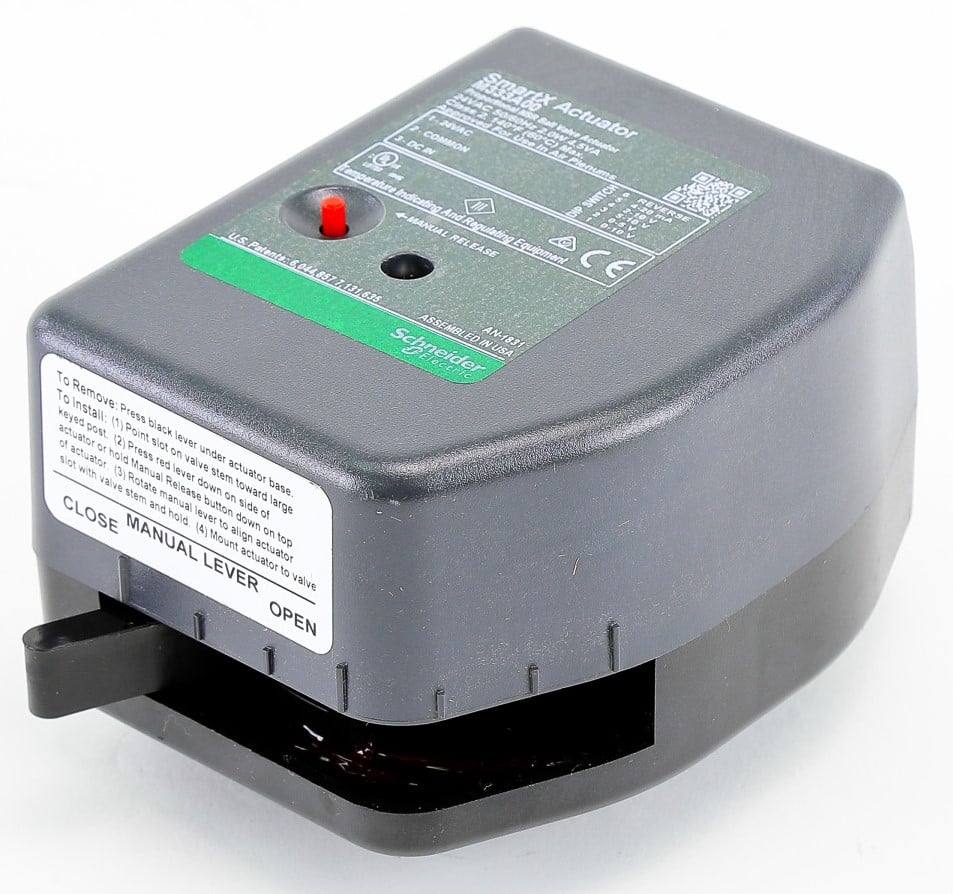

M333A01 Schneider Electric Actuator

Selection Guide Installation Guide Actuator:  Actuator Type: Electric Control Signal: Proportional Control Signal Range: 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC Loss of Power Type: Non-Spring Return Power Input Voltage: 24 VAC Leads and Connections: 10 ft Plenum Mechanical Movement: Rotary Protection Rating: NEMA 2 Product Line: Schneider Electric Product Range: SmartX Actuator Product Series: M333 Actuator Use: Ball Valves Product Specifications: Actuator Type Electric Actuator Use Ball Valves Auxiliary Switch SPDT Conduit Connection 3/8 in Control Signal Proportional/Modulating Control Signal Range 0 to 10 VDC 0 to 5 VDC 2 to 10 VDC 4 to 20 mAdc 5 to 10 VDC Humidity 5 to 95% non-condensing Item Signal Code MTS Lead Length 10 ft Leads and Connections Plenum Loss of Power Type Non-Spring Return Material Housing Polymer Material Seals PTFE Mechanical Movement Rotary Motor Type Split capacitor synchronous Override Yes Override Type Lever Position Indicator Yes Position Indicator Type Housing scale Power Consumption Running VA 2.80 VA Power Consumption Running VA at 60 Hz 2.80 Power Input Frequency 50 Hz 60 Hz Power Input Voltage 24 VAC Power Input Voltage AC Tolerance Plus 20% or minus 15% Product Line Schneider Electric Product Range SmartX Actuator Protection Rating NEMA 2 Rotation Adjustable No Temperature Ambient Operating Range 0 to 60 C (32 to 140 F) Temperature Shipping and Storage Range -40 to 76 C (-40 to 168.8 F) Web Group B01
