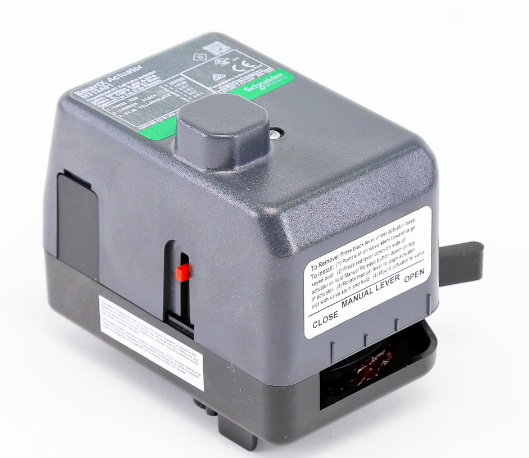

M313A01 Schneider Electric Actuator

The Schneider Electric M313A01 actuator Datasheet Installation Guide Brochure Brochure 2 Actuator: (M313A01): Actuator Type: Electric Control Signal: Proportional Control Signal Range: 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC Loss of Power Type: Spring Return Power Input Voltage: 24 VAC Leads and Connections: 10 ft Plenum Mechanical Movement: Rotary Protection Rating: NEMA 2 Product Line: Schneider Electric Product Range: SmartX Actuator Product Series: M313 Actuator Use: Ball Valves Product Specification Actuator Type Electric Actuator Use Ball Valves Auxiliary Switch SPDT Conduit Connection 3/8 in Control Signal Proportional/Modulating Control Signal Range 0 to 10 VDC 0 to 5 VDC 2 to 10 VDC 4 to 20 mAdc 5 to 10 VDC Humidity 5 to 95% non-condensing Item Signal Code MTS Lead Length 10 ft Leads and Connections Plenum Loss of Power Type Spring Return Material Housing Polymer Material Seals PTFE Mechanical Movement Rotary Motor Type Split capacitor synchronous Override Yes Override Type Lever Position Indicator Yes Position Indicator Type Housing scale Power Consumption Running VA 2.80 VA Power Consumption Running VA at 60 Hz 2.8 Power Input Frequency 50 Hz 60 Hz Power Input Voltage 24 VAC Power Input Voltage AC Tolerance Plus 20% or minus 15% Product Line Schneider Electric Product Range SmartX Actuator Protection Rating NEMA 2 Rotation Adjustable No Temperature Ambient Operating Range 0 to 60 C (32 to 140 F) Temperature Shipping and Storage Range -40 to 76 C (-40 to 168.8 F) Web Group B01 Application The VBB and VBS Series valves with SmartX Actuators are 2-Way or 3-Way, 1/2” or 3/4”, characterized ball valves. The M3 and M2 SmartX Actuators are direct coupled to the VBB/VBS Series valves and accept two-position, floating or proportional control signals from a DDC system, controller, or thermostat for control of hot or chilled water, or solutions of up to 60% glycol. Typical applications include VAV reheat, fan coil units, hot and chilled water coils in air handling units, heat pumps and unit ventilators. Features Easy product selection — all actuators fit all valve bodies. Fast, easy actuator installation — no linkage or tools required. Flow characterizing insert provides equal percentage flow characteristic for stable, accurate floating and proportional control. ANSI IV seat leakage (0.01%) for both 2-Way and 3-Way valves (A and B port). Brass and stainless steel trim models. Cvs from 0.3…10. Normally open, normally closed, and non-spring return assemblies available. Two-position, Floating or Proportional (0…5 Vdc, 0…10 Vdc, 5…10 Vdc, or 4…20 mA dc). Proportional actuator is direct or reverse acting. RoHS Compliant (VBS Assemblies). Reach Compliant.
