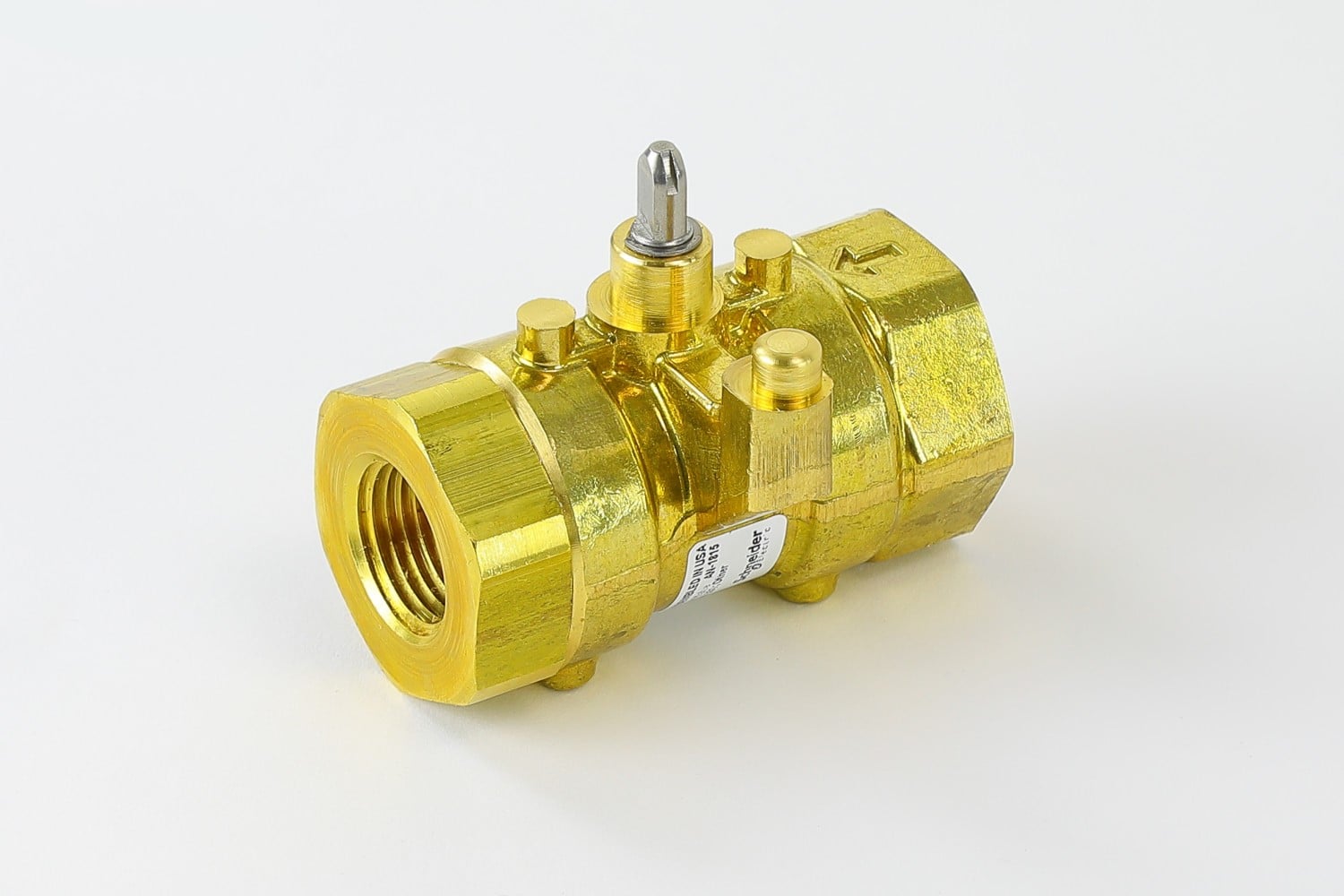

VBB2N02 Schneider Electric Valve

Valve Body (VBB2N02): Body Size: 1/2 in Configuration: 2-Way Type: Ball Connection: NPT Material Trim: Brass Flow Coefficient: 1.2 cv Control Media: Glycol 25%, Glycol 30%, Glycol 50%, Glycol 60%, Water Product Line: SpaceLogic Product Series: VBB2 Product Alert: Not for use with steam. Product Specifications Body Size 15 mm (1/2 in) Brand Schneider Electric By Schneider Yes Circularity Profile No need of specific recycling operations Configuration 2-Way Connection Type NPT Final Result for Connectable Connectable ready Final Result for Flywheel performance tracking Connectable ready Flow Characteristic Equal Percentage Flow Coefficient 1.04 kvs 1.2 cv Global Keywords brass 2 way Ball Valve Indivisible Sale Qty 1 Manufacturer Schneider Electric Material Ball Chrome Plated Brass Material Body Forged brass Material Characterizing Insert Glass-Filled PEEK Material Stem Stainless Steel Material Stem Seal Viton O-Rings Material Trim Brass Media Compatibility Glycol 25 % Glycol 30 % Glycol 50 % Glycol 60 % Water Pipe Size 1/2 in Pressure Allowable Static 600 psi Pressure Class 600 ANSI Pressure Fluid Max Delta P Normal Life 30 psi (206.8 kPa) Pressure Fluid Max Delta P Quiet Service 20 psi (137.9 kPa) Product Alert Not for use with steam. Product Or Component Type Valve Rangeability Greater than 300:1 Seat Leakage Port A: Class IV (0.01 %) Stem Movement Rotary Temperature Range Fluid 19…250 °F (-7…121 °C) Valve Product Range SpaceLogic Valve Product Series VBB2 Valve Type Ball Documents Brochure   SpaceLogic VBB/VBS Series Ball Valves and Actuators – Control, Performance, and Flexibility   SpaceLogic Actuators with VBB/VBS Series Ball Valves Engineering document   EN-205 Water System Guidelines Installation instructions   SpaceLogic VBB, VBS Ball Valves with Proportional Actuators   SpaceLogic VBB/VBS Ball Valves with Floating Actuators Selection guide   SpaceLogic VBB, VBS Series Ball Valve Assemblies
