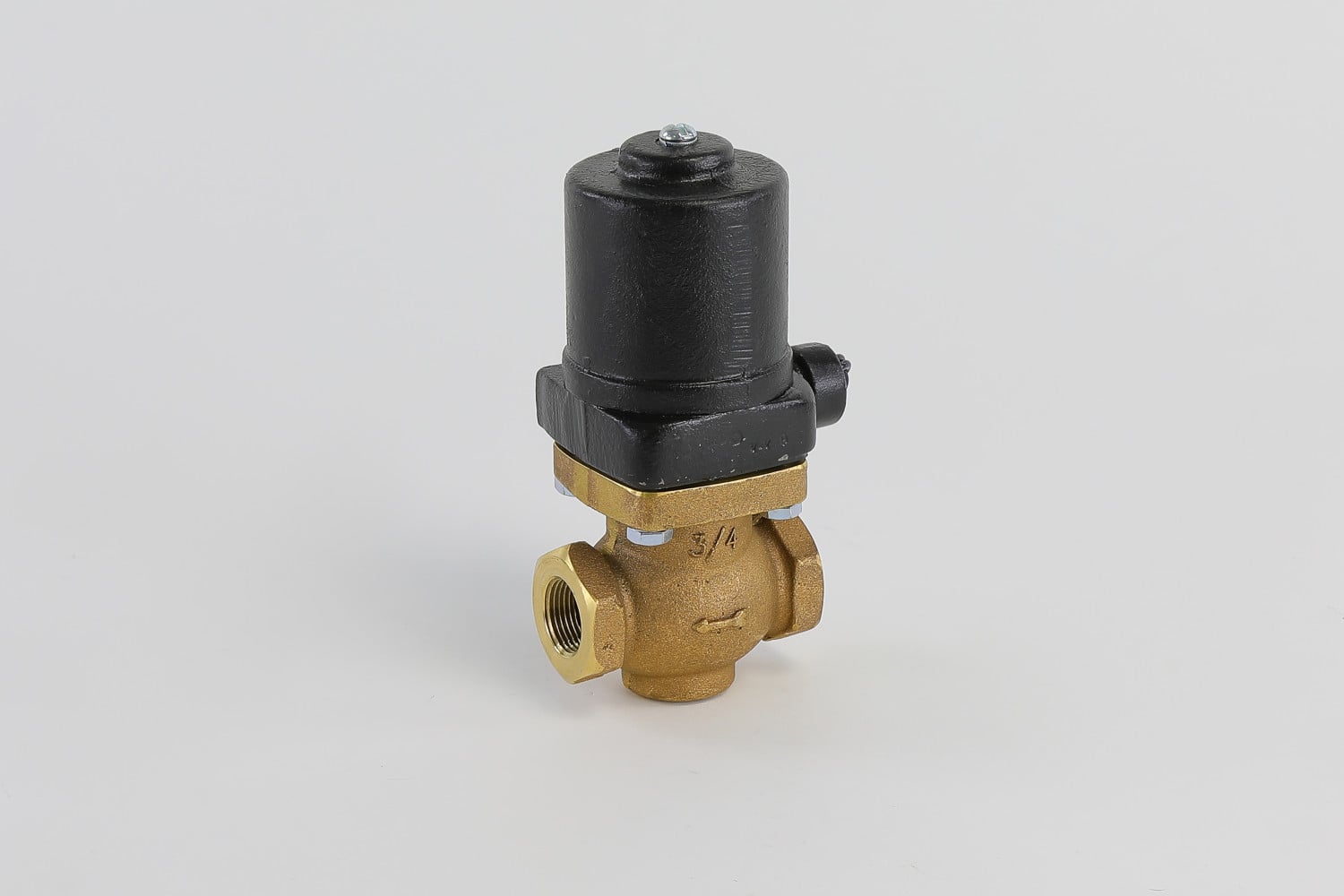

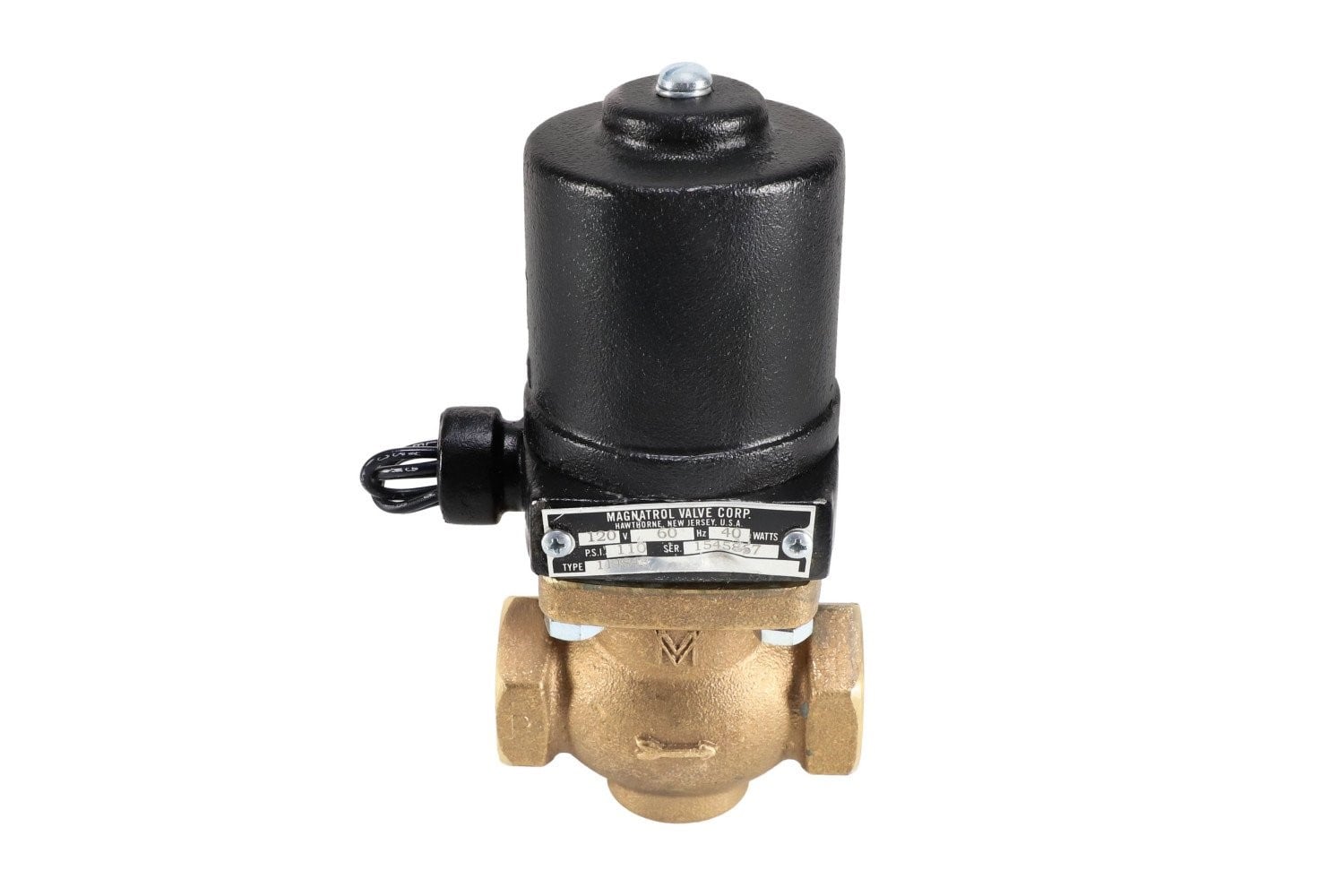

114S43 Magnatrol Solenoid Valve

The Magnatrol 114S43 SOLENOID Valve 3/4″ NC 0/110#Steam 120vFullPo OverviewThe Magnatrol 114S43 (Type S) is a full port, two-way, bronze solenoid valve. It features a Normally Closed (N/C) operation, meaning it is an “Energize to Open” design where the valve opens when the coil is energized and closes when power is de-energized. This internal pilot-operated valve is designed to operate from zero to its maximum differential pressure, requiring no differential pressure to open. It is packless in construction and features a coil designed for continuous duty.FeaturesOperation: Normally Closed (N/C), opening upon coil energization.Port: Full Port, providing a straight-thru design.Pressure Operation: Operates from zero to maximum differential pressure with no differential pressure required to open.Construction: Cast Bronze body with Globe Pattern, NPT ends, and packless design.Coil: Encapsulated Class H coil with 18-inch leads, designed for continuous duty with both AC and DC voltages.Installation: Must be mounted in a horizontal pipe with the solenoid enclosure vertical and on top.Materials: Bronze Piston, 430 Stainless Steel Plunger, 303 Stainless Steel Pilot Valve, and Glass Filled Teflon Orifice Seal.SpecificationsPart Number: 114S43 (G114S43SC-ACTS)Pipe Size: 3/4″ NPTMaximum Differential Pressure (Max Diff PSI): 110 PSIMaximum Fluid Temperature: 400° FControl Voltage (Standard AC): 120 VAC, 60 HZWattage: 40 Watts AC / 28 Watts DCAmperage (120-60): Hold Amps 0.6A; Inrush Amps 2.0ABody Material: BronzeMaximum Static Pressure: 200 PSIStandards: Explosion-Proof & NEMA 4; NEMA 12 (General Purpose); NEMA 4XApplicationsThe 114S43 solenoid valve is primarily used to control the flow of steam. It is essential that the steam be clean and free of sediment for proper function.
