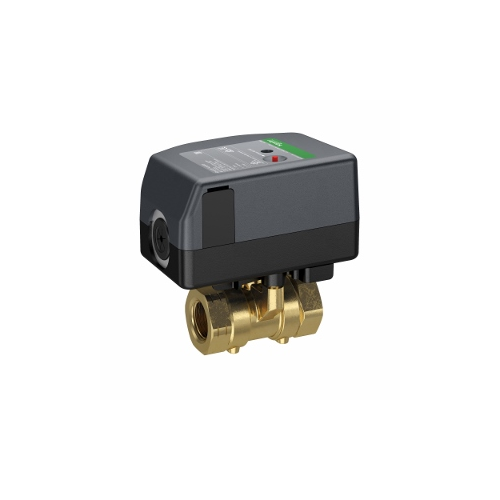

VBB2N04 M332A01 Schneider Electric Valve Actuator Assembly

Valve Assembly: Body Size: 1/2 in Configuration: 2-Way Type: Ball Connection: NPT Material Trim: Brass Flow Coefficient: 3.5 cv Close-Off Pressure: 130 PSI Actuator Type: Electric Control Signal: Floating Loss of Power Type: Non-Spring Return Loss of Power Position: Fail in place Power Input Voltage: 24 VAC Leads and Connections: Terminal Block Mechanical Movement: Rotary Protection Rating: NEMA 2 Assembly Components: Valve Body: VBB2N04 Valve Linkage: None, tool-less connection Actuator: M332A01 Actuator Range: SpaceLogic Product Alert: Not for use with steam. Product Specifications Actuator Housing Material Polymer Actuator Type Electric Actuator Use Ball Valves Body Size 15 mm (1/2 in) By Schneider Yes California Residents  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Close-Off Pressure 130 psi 897 kPa Conduit Connection 3/8 in Configuration 2-Way Connection Type NPT Control Signal Floating Flow Characteristic Equal percentage Flow Coefficient 3.03 kvs 3.50 cv Humidity 5 to 95% non-condensing IP Protection Rating IP11 Lead Length 10 ft Leads and Connections Plenum Loss of Power Position Fail in place Loss of Power Type Non-Spring Return Material Ball Chrome plated brass Material Body Forged brass Material Characterizing Insert Glass-filled PEEK Material Seals PTFE Material Stem Stainless steel Material Stem Seal Viton O-Rings Material Trim Brass Mechanical Movement Rotary Media Compatibility Glycol 25% Glycol 30% Glycol 50% Glycol 60% Water Motor Type Split capacitor synchronous NEMA Protection Rating NEMA 2 Override Automatic reset Pipe Size 1/2 in Position Indicator Housing scale Power Consumption Running VA 2.40 VA Power Input Frequency 50 Hz 60 Hz Power Input Voltage 24 VAC Power Input Voltage AC Tolerance Plus 20% or minus 15% Pressure Allowable Static 600 psi Pressure Class 600 ANSI Pressure Fluid Max Delta P Normal Life 207 kPa 30 psi Pressure Fluid Max Delta P Quiet Service 138 kPa 20 psi Product Line Schneider Electric Product Range Spacelogic Product Series VBB2 Rangeability Greater than 300:1 Seat Leakage Port A ANSI IV (0.01%) Stem Movement Rotary Temperature Ambient Operating Range 0 to 60 C (32 to 140 F) Temperature Range Fluid -7 to 121 C (20 to 250 F) Temperature Shipping and Storage Range -40 to 76 C (-40 to 168.8 F) Type Ball Documents Brochure   SpaceLogic VBB/VBS Series Ball Valves and Actuators – Control, Performance, and Flexibility   SpaceLogic Actuators with VBB/VBS Series Ball Valves Engineering document   EN-205 Water System Guidelines Installation instructions   SpaceLogic VBB/VBS Ball Valves with Floating Actuators Selection guide   SpaceLogic VBB, VBS Series Ball Valve Assemblies
