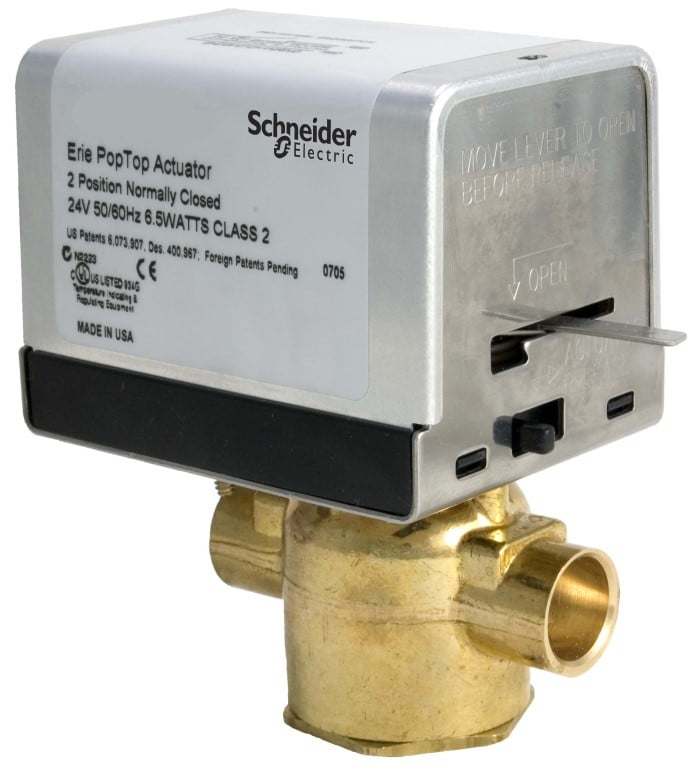

VT2213G13A020 Schneider Electric Valve Actuator

ZV .5IN 2W 3.5CV 2PGT SR 24V Valve Assembly: Body Size: 1/2 in Configuration: 2-Way Type: Zone Connection: Sweat Material Trim: Brass Flow Coefficient: 3.5 cv Control Media: Glycol 25 to 50% and Water Product Line: Schneider Electric Product Range: Erie PopTop Product Series: VT2 Product Alert: Not for use with steam Close-Off Pressure: 25 PSI Actuator Type: Electric Control Signal: 2-Position (On/Off) Loss of Power Type: Spring Return Loss of Power Position: Normally closed Power Input Voltage: 24 VAC Leads and Connections: 18 in Appliance Mechanical Movement: Rotary Protection Rating: NEMA 1 Assembly Components: Valve Body: VT2213 Valve Linkage: None, tool-less connection Actuator: AG13A020 Actuator Range: Erie PopTop Product Alert: Not for use with steam Product Specifications [Us] rated supply voltage 24 V AC Actuator Product Range Erie PopTop Actuator Product Series AG Actuator Type Electric Auxiliary Switch No Body Size 15 mm (1/2 in) Brand Schneider Electric By Schneider Yes Close-Off Pressure 173 kPa 25 psi Configuration 2-Way Connection Type Sweat Control Signal 2-Position (On/Off) Final Result for Connectable Connectable ready Final Result for Flywheel performance tracking Connectable ready Flow Characteristic Quick open Flow Coefficient 3.03 kvs 3.5 cv Humidity 5…95 % non-condensing IP Protection Rating IP10 Lead Length 18 in Leads and Connections Appliance Loss of Power Position Normally closed Loss of Power Type Spring return Manufacturer Schneider Electric Material Body Forged brass Material Stem Nickel Plated Brass Material Trim Brass Mechanical Movement Rotary Media Compatibility Glycol 25 % Glycol 30 % Glycol 50 % Water Motor Type AC Synchronous Servo Motor Override Automatic reset Paddle Material Buna N Pipe Size 1/2 in Position Indicator Housing Scale Power Consumption Running VA 7.5 VA AC Pressure Allowable Static 400 psi Pressure Class ANSI class 400 Product Alert Not for use with steam Product Destination zone valves Product Or Component Type Valve-actuator assembly Seat Leakage Port A: Class IV (0.01 %) Seat Material Port A: brass Stem Movement Rotary Temperature Ambient Operating Range 32…200 °F (0…93.3 °C) Temperature Range Fluid 32…199 °F (0…93 °C) Temperature Shipping and Storage Range -40…160 °F (-40…71 °C) Valve Product Range Erie PopTop Valve Product Series VT2 Valve Type Documents Brochure   Erie PopTop Temperature Control – Valves and Actuators Installation instructions   Erie™ PopTop™ Series Valve Bodies and Actuators   Erie™ VT/VS PopTop™ Series Two-Position Spring Return Valves General & High Close-Off PopTop Zone Valves
