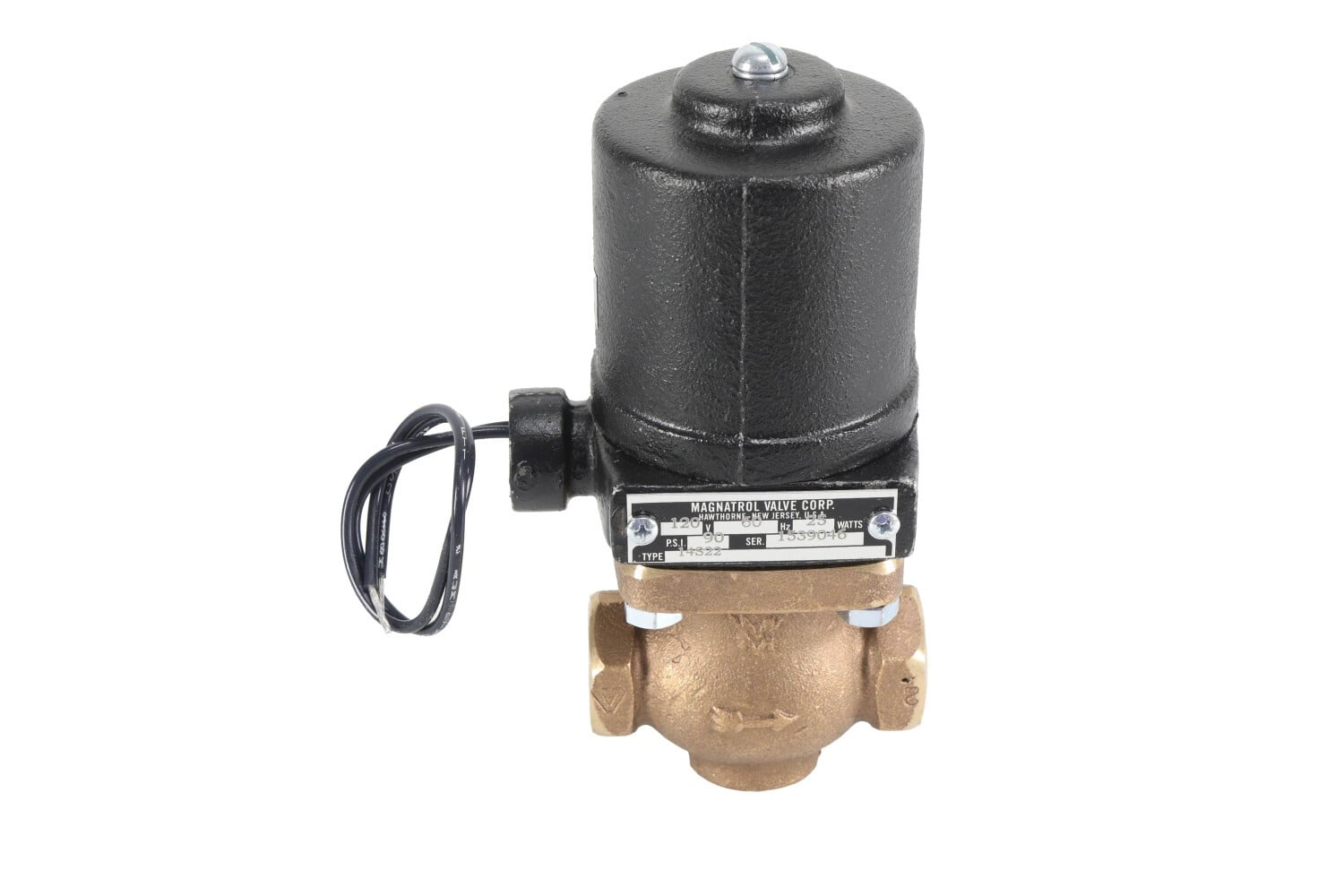

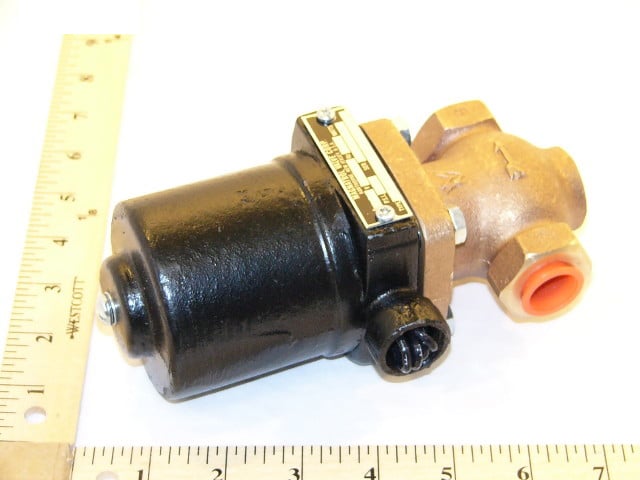

14S22 Magnatrol Solenoid Valve

The Magnatrol 14S22 SOLENOID Valve 1/2″ N/C 120vac 0/90# STEAM Overview The Magnatrol 14S22 is a two-way, full port, Bronze solenoid valve of Type “S,” featuring Normally Closed (N/C) operation, which means it opens when the coil is energized (Energize to Open). This valve is an internal pilot-operated or direct-acting design that requires no differential pressure to open, functioning from zero to its maximum differential pressure. It is constructed to be packless for reliable service and is often listed as discontinued by the manufacturer. Features Operation: Normally Closed (N/C), opening upon coil energization and closing when de-energized. Construction: Cast Bronze body with Globe Pattern and NPT ends, utilizing a packless design. Full Port: Provides a straight-thru flow design. Coil: Encapsulated Class H coil is standard, designed for continuous duty with available AC and DC voltages. Installation: Must be mounted in a horizontal pipe with the solenoid enclosure vertical and on top. Specifications Part Number: 14S22 Pipe Size: 1/2″ NPT Maximum Differential Pressure (Max Diff PSI): 90 PSI Control Voltage (Standard AC): 120 VAC, 60 HZ Power Rating (120-60): 25 Watts AC / 18 Watts DC Amps Hold (120-60): 0.4 Amps Inrush (120-60): 1.2 Maximum Fluid Temperature: 400° F Body Material: Bronze Cv Factor (Nc): 3.5 Shipping Weight: Approximately 8 lbs Applications The 14S22 solenoid valve is primarily used to control the flow of steam, which must be free of sediment. It is a general-purpose valve suitable for industrial applications and process control systems.
