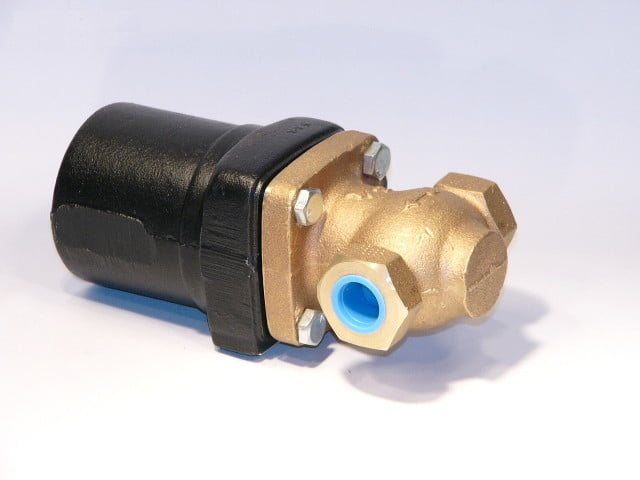

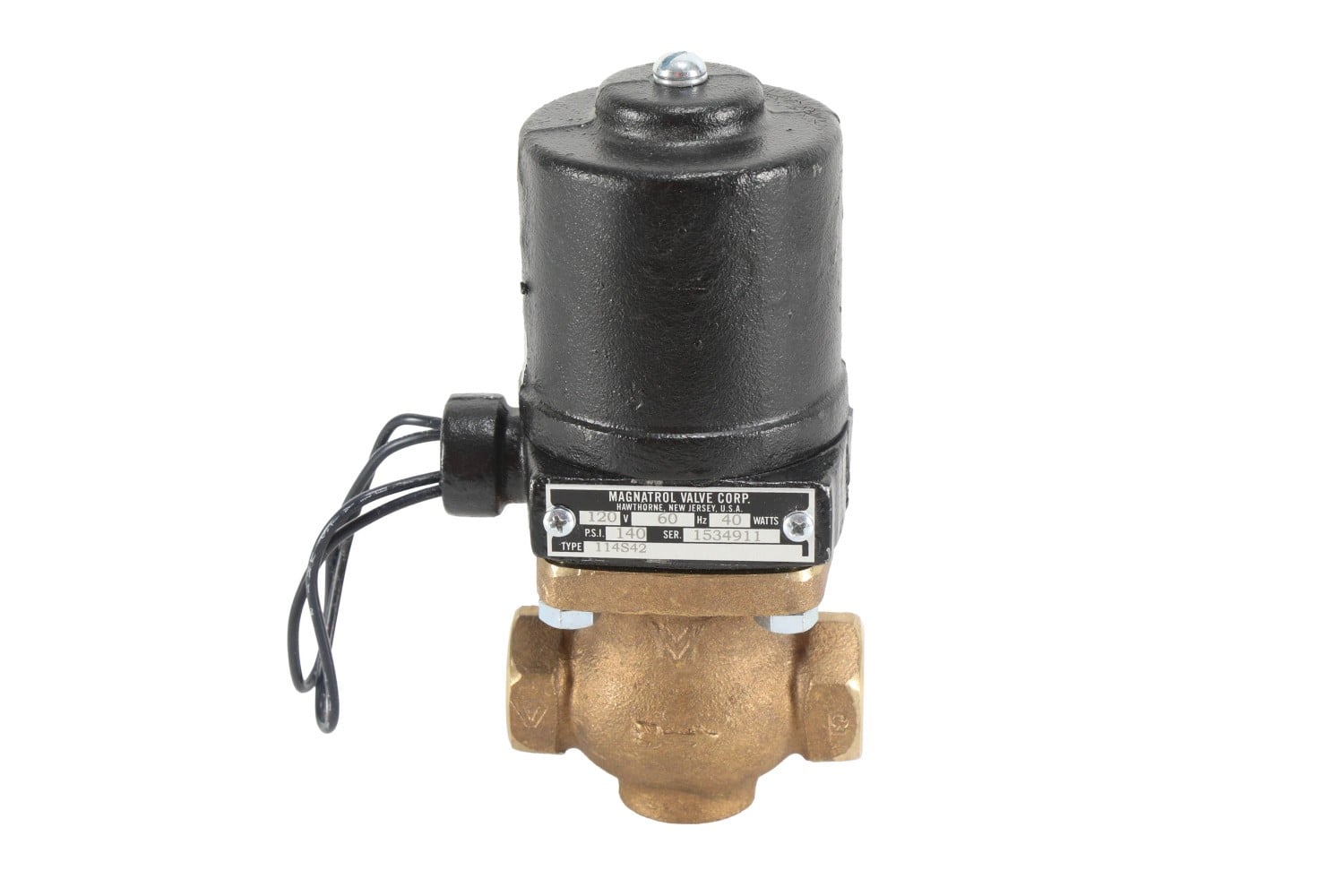

114S42 Magnatrol Solenoid Valve

The Magnatrol 114S42 SOLENOID Valve 1/2″npt N/C 0/140# STEAM 120v Overview The 114S42 Magnatrol Solenoid Valve is a two-way, full port, Normally Closed (N/C) valve designed for general-purpose fluid control, specifically steam. It is an internal pilot-operated or direct-acting valve built for dependable, packless service and is designed to operate from zero to its maximum differential pressure. The 114S42 is obsolete and has been directly replaced by the G114S42SC-ACTS model. Features Operation: Normally Closed (N/C), meaning the valve opens when the coil is energized (Energize to Open) and closes when power is de-energized. Construction: The valve body is typically bronze with stainless steel trim (for the replacement model G114S42SC-ACTS) and features a packless design. Full Port: Provides a straight-thru design for flow. Pressure Operation: No differential pressure is required for the valve to open. Coil: Encapsulated coils are designed for continuous duty with standard AC and DC voltages. Installation: Must be mounted in a horizontal pipe with the solenoid enclosure vertical and on top. Specifications Part Number: 114S42 (Obsolete) Replacement Part Number: G114S42SC-ACTS Pipe Size: 1/2″ NPT Maximum Differential Pressure: 140 PSI Control Voltage: 120 VAC, 60 HZ Power Rating: 40 Watts Cv Factor: 3.5 Maximum Fluid Temperature: Up to 400° F Body Material: Bronze (for replacement model G114S42SC-ACTS) Weight: Approximately 7.00 lbs Applications The 114S42 solenoid valve is specifically used to control the flow of steam, which must be free of sediment. It is suitable for a variety of industrial settings, including HVAC and process control systems, for reliable flow control in high-temperature and high-pressure environments.
