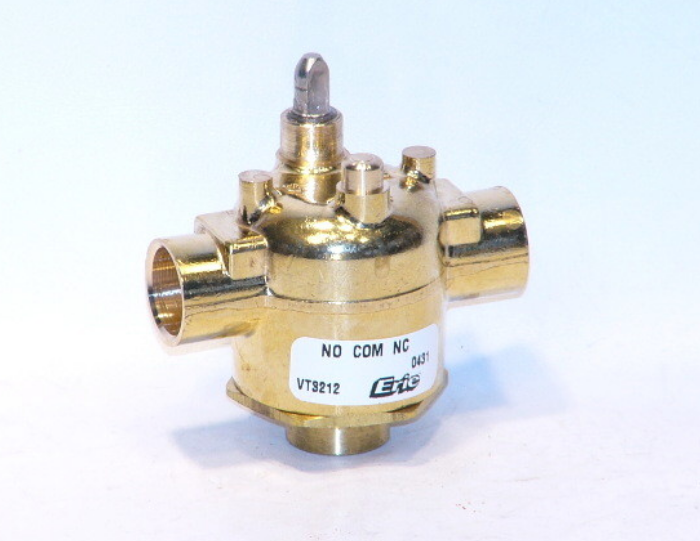

VT3212 Schneider Electric Erie Valve

Valve Body (VT3212): Body Size: 1/2 in Configuration: 3-Way Mixing/Diverting Type: Zone Connection: Sweat Material Trim: Brass Flow Coefficient: 3 Cv Control Media: Glycol 25 to 50% and Water Product Line: Schneider Electric Product Range: Erie PopTop Product Series: VT3 Product Alert: Not for use with steam   Product Specifications Body Size 15 mm (1/2 in) By Schneider Yes California Residents  WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Configuration 3-Way Diverting 3-Way Mixing 3-Way Mixing/Diverting Connection Type Sweat Flow Characteristic Quick open Flow Coefficient 2.59 kvs 2.99 cv Material Body Forged brass Material Paddle Buna N Material Seat Port A Brass Material Stem Nickel-plated Material Trim Brass Media Compatibility Glycol 25% Glycol 30% Glycol 50% Water Pipe Size 1/2 in Pressure Allowable Static 400 psi Pressure Class 400 ANSI Product Range Erie PopTop Product Series VT3 Seat Leakage Port A ANSI IV (0.01%) Stem Movement Rotary Temperature Range Fluid 0 to 93 C (32 to 200 F) Type Zone
