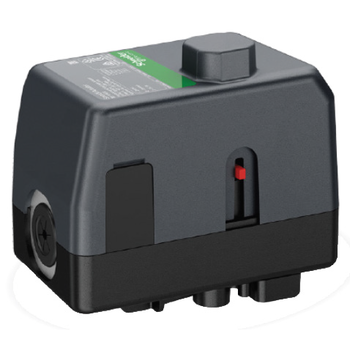

M323A01 Schneider Electric Actuator

Actuator: (M323A01): Actuator Type: Electric Control Signal: Proportional Control Signal Range: 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC Loss of Power Type: Spring Return Power Input Voltage: 24 VAC Leads and Connections: 10 ft Plenum Mechanical Movement: Rotary Protection Rating: NEMA 2 Product Line: Schneider Electric Product Range: SmartX Actuator Product Series: M323 Actuator Use: Ball Valves Product Specifications Actuator Housing Material Polymer Actuator Type Electric Actuator Use Ball Valves By Schneider Yes Conduit Connection 3/8 in Control Signal Proportional/Modulating Control Signal Range 0 to 10 VDC 0 to 5 VDC 2 to 10 VDC 4 to 20 mAdc 5 to 10 VDC Humidity 5 to 95% non-condensing IP Protection Rating IP11 Lead Length 10 ft Leads and Connections Plenum Loss of Power Type Spring Return Mechanical Movement Rotary Motor Type Split capacitor synchronous NEMA Protection Rating NEMA 2 Override Automatic reset Position Indicator Housing scale Power Consumption Running VA 2.80 VA Power Input Frequency 50 Hz 60 Hz Power Input Voltage 24 VAC Power Input Voltage AC Tolerance Plus 20% or minus 15% Product Range SmartX Actuator Temperature Ambient Operating Range 0 to 60 C (32 to 140 F) Temperature Shipping and Storage Range -40 to 76 C (-40 to 168.8 F) Documents Brochure   SpaceLogic VBB/VBS Series Ball Valves and Actuators – Control, Performance, and Flexibility   SpaceLogic Actuators with VBB/VBS Series Ball Valves Installation instructions   SpaceLogic VBB, VBS Ball Valves with Proportional Actuators Selection guide   SpaceLogic VBB, VBS Series Ball Valve Assemblies
