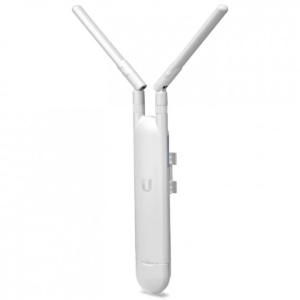

Ubiquiti Unifi Mesh Access Point UAP-AC-M

Description Ubiquiti UniFi UAP-AC-M Wi-Fi 5 Mesh Access Point (UAP-AC-M) Ubiquiti UniFi UAP-AC-M is a compact, high-performance Wi-Fi 5 mesh access point designed for both indoor and outdoor use. It supports 4 spatial streams and offers flexible mounting options, making it ideal for extending coverage in large spaces and areas requiring directional coverage with optional external antennas. Key Features Wi-Fi 5 (802.11ac) for fast and reliable wireless networking 4 spatial streams for efficient multi-device communication Coverage Area: 140 m² (1,500 ft²) ideal for medium to large spaces 250 connected devices capability for large-scale environments PoE-powered (Passive PoE 24V) for simple installation with minimal cabling Max Data Rate: 2.4 GHz up to 300 Mbps and 5 GHz up to 867 Mbps (BW80) 2×2 MIMO technology on both 2.4 GHz and 5 GHz bands External antenna support via two RP-SMA connectors for directional coverage (UMA-D external antenna accessory) Weatherproof design for outdoor deployment with a temperature range from -30°C to 70°C (-22°F to 158°F) Mounting options: Wall, pole, or fast-mount (included) Power Consumption: Max. 8.5W Bluetooth integration for easy management and setup Networking interface: 1 GbE RJ45 port VLAN support for network segmentation Guest traffic isolation for secure guest network access Security Standards: WPA-PSK, WPA-Enterprise (WPA/WPA2) with TKIP/AES encryption Mechanical Specifications Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4″) Weight: 152 g (5.4 oz) Weatherproofing: IPX5 (weatherproof when installed LED side up) Performance 2.4 GHz Max TX Power: 20 dBm 5 GHz Max TX Power: 20 dBm Antenna Gain: 2.4 GHz: 3 dBi 5 GHz: 4 dBi Supported Data Rates: 802.11a/b/g: Up to 54 Mbps 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11ac: 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) Software & Management UniFi Controller Software: Easy-to-use network management with cloud access Advanced QoS: Per-user rate limiting for better traffic management VLAN Support: 802.1Q for creating virtual LANs BSSID Support: Up to 4 per radio for optimal wireless performance Power and Mounting Power Supply: Gigabit PoE adapter (included with single unit purchase, 24V, 0.5A) Power Method: Passive PoE, 24V Mounting Options: Wall, pole, fast-mount (included) External Antenna: Optional UMA-D antenna for enhanced directional coverage
